High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line
Contactar ahora

High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line

Cantidad de orden mínima : 1 juego Precio : USD 50000-120000 SET
Detalles de empaquetado : Paquete de exportación estándar Tiempo de entrega : 60 días laborables
Capacidad de la fuente : 1 CONJUNTO CADA 75-80 días
Lugar de origen: Porcelana Nombre de la marca: MOOGE
Certificación: CE ISO Número de modelo: RSS-SJ120

Información detallada
Tipo de máquina: Máquina granuladora de enfriamiento de hebras de bolsas tejidas pp Voltaje: 380V 50HZ 3Phase o modificado para requisitos particulares
contactor: Schneider Caja de cambios: Guomao
Medidor de temperatura: Omorón Material del tornillo: 38CrMoALA
Marca inversor: ABB o Delta Velocidad de rotación del tornillo: 1-115rpm
Parafusos L/D: 28-33:1 Método de corte: Corte por anillo de agua
Método de filtro: Placa de intercambio hidráulica Producto final: pellet con tamaño de 3 mm
Resaltar:

PP PE film recycling granulator machine

,

plastic pellet making line machine

,

waste plastic pelletizing machine with warranty

Descripción de producto

Product Description
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 0
MOOGE has over 20 years of expertise in plastic recycling machinery. Our philosophy is to make the world better with recycling. MOOGE is committed to continue developing better and more powerful technologies. More than 20 years of experience in plastic recycling processing helps us to actively contribute to the success of our customers by providing sustainable solutions that meet the needs of the industry.
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 1
Plastic pelletizing is a system and technology in which plastic scraps are recycled back into a reusable raw material. The melt-filtrated strands are cooled briefly and cut into pellets. Plastic manufacturers or processors can then reuse it for a variety of applications. Plastic pelletizing machine for recycling plays a crucial role to recycle and reuse plastic wastes. More and more manufacturers are looking for ways to reduce waste and recycling materials in their processes.

Plastic pelletizing machine list include:
1. CBD-1000 Conveyor Belt
2. Metal detector
3. Compactor Force Feeder
4. Screw Extruder (mother stage)
5. Hydraulic Screen Changer-Double Pillar
6. Vacuum Degassing Die Head
7. Screw Extruder (baby stage)
8. Hydraulic Screen Changer--Double Pillar
9. Vertical Die Face Cutting System
10. Water Cooling Tank
11. Dewatering Machine
12. Vibration Screen
13. Air Feeding System &Silo Storage
14. Electric Control Cabinet

Why Choose with us:
1. Wide range of materials processing: No matter the type of the material such as pe film, pp woven bags,jumbo bags etc. , all materials can be processed in the machine. 2. Energy saving: It reduces the overall energy consumption up to 20-25%. 3. Labor cost saving: Only 1 ~ 2 operators are needed to operate the whole plant. 4. Output capacity: In comparison to traditional recycling pelletizing machines, us machines provide higher output capacity(According to incomplete statistics, the output can be increased by about 10% compared with the traditional granulator.) 5. Granules: Looks good and more fuller
Waste Plastic Before Us Plastic Pelletizing Machine
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 2
Waste Plastic After Us Plastic Pelletizing Machine
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 3
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 4
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 5
Product Parameters
Single Stage Extruder Plastic Pelletizing Machine (Mother Stage)
Model
Extruder Stage
Screw Diameter:MM
Screw Power:KW
Capacity:KG/H
RDS-SJ 100
1
100
45
150-200
RDS-SJ 120
1
120
75
200-300
RDS-SJ 150
1
150
110
400-500
RDS-SJ 160
1
1600
132
500-600
RDS-SJ 180
1
180
160
600-800
RDS-SJ 200
1
200
200
800-1000
Double Stage Extruder Plastic Pelletizing Machine (Mother And Baby Stage)
Model
Extruder Stage
Screw Diameter:MM
Screw Power:KW
Capacity:KG/H
RSS-SJ 100
2
100
45KW+22KW
150-200
RSS-SJ 120
2
120
75KW+30KW
200-300
RSS-SJ 150
2
150
110KW+37KW
400-500
RSS-SJ 160
2
160
132KW+37KW
500-600
RSS-SJ 180
2
180
160KW+45KW
600-800
RSS-SJ 200
2
200
200KW+45KW
800-1000
Machine Video & Details

00:13

00:33

High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 6

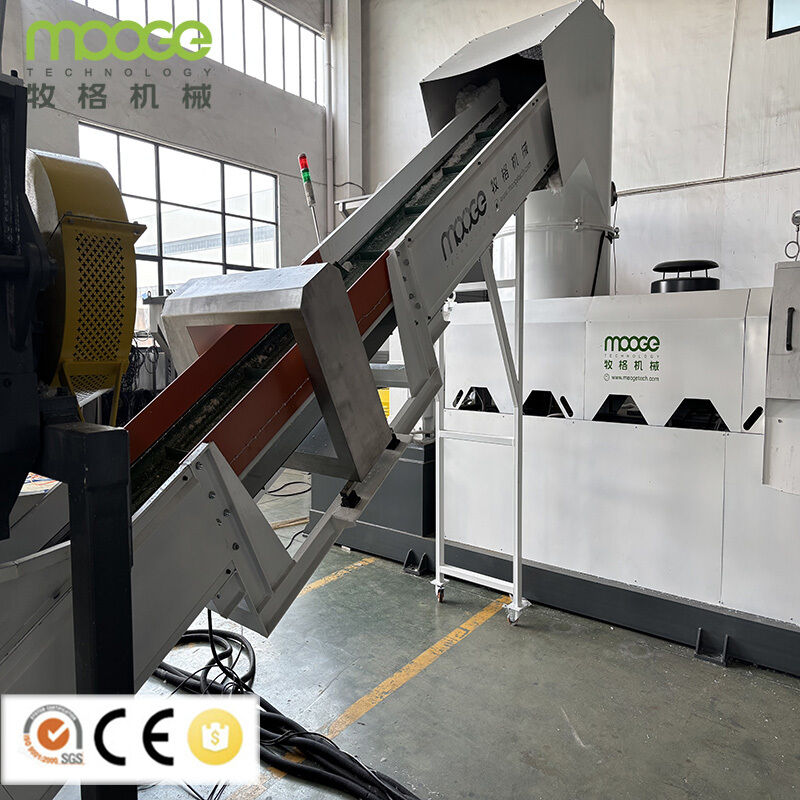

Conveyor Belt + Metal Detector Machine
Automatic and inverter control feeding plastic to extruder machine ,conveyor belt bottom have wheel ,easy moving . by metal detector machine, automatic checking metal and stop feeding , manual remover metal
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 7
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 8
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 9

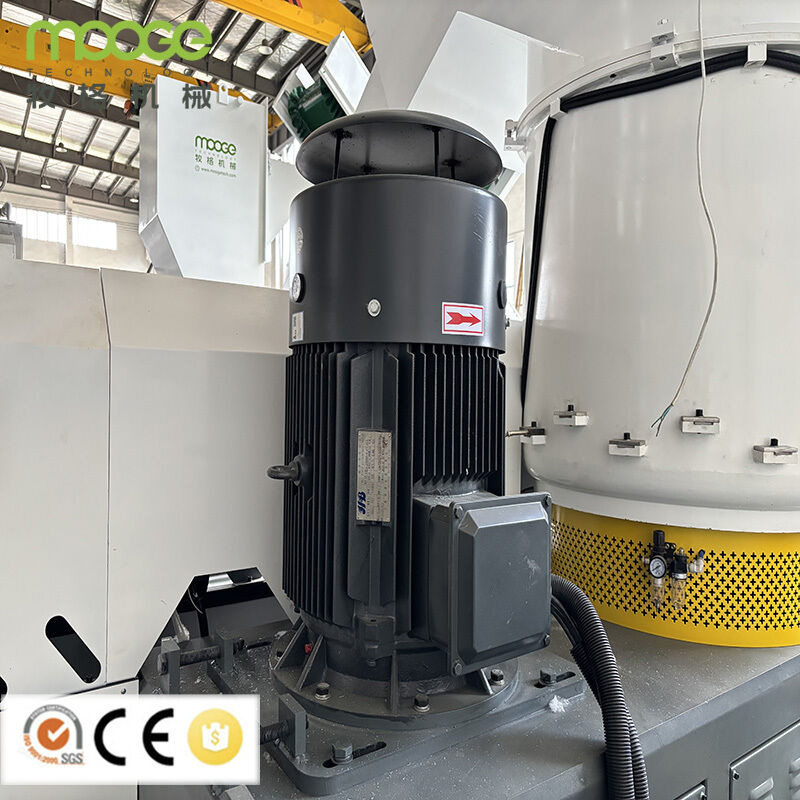

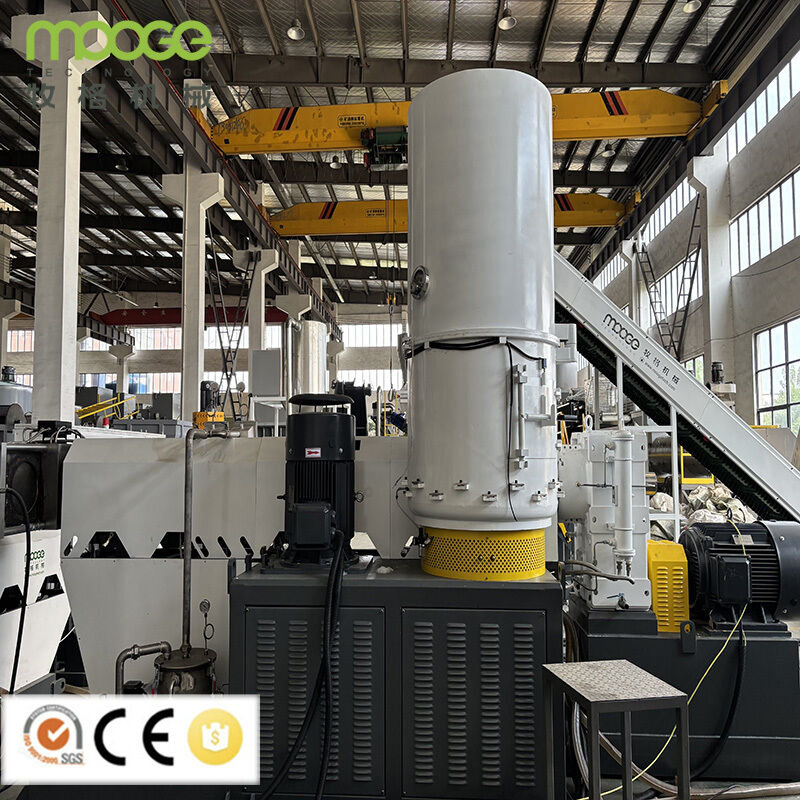

Compactor Force Feeder - Agglomerator

Powerful chassis compaction system, sharping blades, and excellent water cooling system ensure that the equipment can match different types of materials. Rotation speed:750r/min Rotation knife:12 PCS Fixed knife:15 PCS Thermocouple:1 Diameter:1500mm
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 10
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 11
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 12

First Stage Mother Extruder Barrel And Screw

Our screws are highly nitrided, wear-resistant, and have a long life. They also use high-performance ceramic heaters to quickly plasticize the plastic inside the barrel for extrusion.
Screw and barrel material: 38CrMoAlA
Nitriding thickness: 0.5-0.7mm Screw surface hardness: 900-1000HV
With pressure sensor to detecting the pressure to protecting the Extruder and screen changer; Once the pressure is high, it will automatic alarm
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 13

Economic Model-Board Model

this is economic model filter for pelletizing line
it have double board,four board etc.
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 14

Advance Model-Laser Filter

this is advance model - later filter
more good filter and more good quality for granules
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 15
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 16
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 17

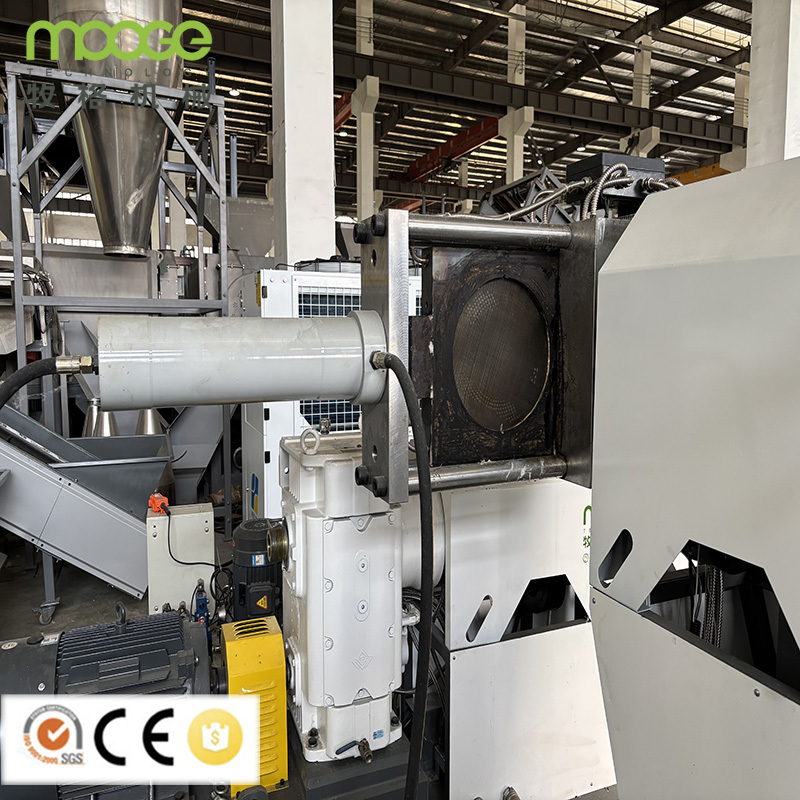

Double Pillar Hydraulic Filtration System-Standard Model

Equipped with high-speed hydraulic switching device, larger melt filtration area, fine filter screen, higher pressure load, no leakage during operationPressure Max: 30Mpa Heating temperature: less than or equal to 300 degrees .we also supply economic board screen changer and laser model screen changer
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 18
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 19
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 20

Second Stage Baby Extruder Barrel And Screw

The same configuration as the first stage extruder, excellent performance for secondary filtration, to obtain a cleaner melt
Screw and barrel material: 38CrMoAlA
Nitriding thickness: 0.5-0.7mm Screw surface hardness: 900-1000HV
With pressure sensor to detecting the pressure to protecting the Extruder and screen changer; Once the pressure is high, it will automatic alarm
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 21

Second Hydraulic Filtration System

in second stage ,use more higher filter screen .such as a 120-mesh filter. After two filtrations, more impurities are filtered out.Pressure Max: 30Mpa Heating temperature: less than or equal to 300 degrees

Vertical Pellet Cutting System
Vertical pelletizing, matching different recycled materials, using high-quality alloy cutter heads, fast cutting, allowing the material to enter the cooling and molding system

Cutting blade Qty: 4PCS Die mould Made by the 40Cr material with forging treatment, surface been nitriding treatment and buffing. Material out coming holes diameter: 2mm
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 22

Watering Cooling System

Linear cooling water tank, fast flushing cooling particles, 304 stainless steel material
equipped with 1.5kw cold water circulation pump
High Speed Dewatering Machine High Speed Dewatering Machine-304 Stainless Steel 1500 rpm high speed spindle, strong centrifugal force, low water content Inside rotor is special design as hexagon Machine bottom have one waste water collecting tank with filtering mesh to clean the water before drain
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 23

Double Layer Vibrator machine

Use double-layer high-efficiency vibrating screen to screen high-quality and full particles
Motor Power: 0.4KWx2
Made by stainless steel
First layer to screen out bigger size material
Good material goes out from middle
Dust get out from the bottom

Air Conveyor Pipe
Large diameter pipe, easy to blow particles to the storage hopper, stainless steel material, wear-resistant and long service life
Blower power: 4KW
Conveying pipe diameter: 133mm
conveying pipe Made by stainless steel SUS304

Packing Storage Silo
Silo volume: 2m3 Made by stainless steel SUS304

Machine Control Panel System
Switch: SCHNEIDER brand
Temp. Meter: OMRON brand of Japan
Contactor: SCHNEIDER/SIEMENS Brand
Main invertor: “ABB” Brand
Other electronics : DELIXI Brand
Our Teams
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 24
Our Service Team
Service Before Sale
1. 24 hours online .Your inquiry will be quick reply by email . Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )
2. Professionally and patiently introduction,details pictures and
working video to show machine

Service On Sale :
1. Test every machine and inspect the machine seriously . 2. Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok . 3. Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free. If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery.

Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
Customer Feedback
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 25
Packing & Delivery & Install
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 26
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 27
Our Factory
High Output PP PE Film Recycling Granulator Machine for Waste Plastic Pellet Making Line 28

Our factory located in zhangjiagang city,suzhou,jiangsu province, the company covers an area of more than 10,000 square meters, mooge tech group is a focus on machinery manufacturing and research andDevelopment of enterprises. The company takes "honesty, innovation, quality, service" as the core value, and is committed to providing customers with efficient, high-quality machinery and equipment and services. Since its establishment, mooge machinery has always insisted on innovation drive, focusing on technology research and development and investment, with a professional r&d team and advanced Production equipment. The company's main products include plastic recycling machinery, crusher, shredder, granulator, pelletizing Machinery, solid waste processing equipment, non-metallic recycling processing equipment, etc., which are widely used in plastic processing,packaging.Resource regeneration, environmental protection recycling and other fields.
